CAPABILITIES

At Midwest Precision, we pride ourselves in being technologically advanced and in having the best equipment and machinery available. We are highly trained machinists and innovators, utilizing creativity and inventive thinking to ensure the customer receives the products and service they expect. We are committed to our customers complete satisfaction.


    Engineering Services

    Our Engineering department has the skill for any project required, from reverse engineering to the design of the right fixtures to enhance our productive efficiency.  Thus adding value to the service you receive. Five CAD systems utilizing Solidworks and GIBBS CAM 2013 enable our engineers to create the most accurate and dependable programs.

    CAPABILITIES

    • Five CAD computer systems
    • GIBBS CAM 2013
    • Solidworks
    • Prototyping
    • Reverse engineering
    • Predator server


    Milling

    Being one of the top multi-axis capable machine shops in the Midwest has given us the opportunity to work with a variety of industries such as medical, aerospace, defense and food service.

    CAPABILITIES

    • 3,4, and 5-axis machining
    • Simultaneous 5-axis vertical mill
    • (3) Fadal VMC with 4th axi
    • Fadal CNC mill
    • Monarch CNC mill
    • Makino horizontal with pallet changer
    • Hwacheon Sirius II with pallet changer
    • (2) Matsuura production mills 1 with pallet changer
    • (3) Mitsubishi horizontal with pallet changer


    CNC Turning

    In our precision lathe department, the most sophisticated parts are everyday work for us

    CAPABILITIES

    • Fadal 4525

    • Haas EC-1600-4X

    • Hermle CS20V (3)

    • Hermle C600V 5-axis milling center

    • Hwacheon VMC

    • Makino A61

    • Matsuura Ra-2g

    • Matsuura ES-550V

    • Matsuura ES-800V

    • Mitsubishi M-H4B (2) M-H4 (1)

    • Monarch VMC

    • Mori Seiki Dura Vertical 5100



    • Lathes equipped with automatic bar feeders
    • 120 tool maximum capacity 5-axis design
    • (2) Hwacheon CNC Lathe
    • (2) Citizen C32 Lathe w/bar feeder
    • Haas EC 1600
    • Haas TL-2 Tool Room Lathe
    • Haas SE 40 long bed
    • LeBlonde Lathe
    • 3,4, & 5-axis capable
    • Fadal 3016
    • Fadal 4020 (4) 4020S (1)


    EDM (CNC Wire & CNC Conventional)

    CAPABILITIES

    • 3 & 4 axis capability
    • Tolerance up to .0001"
    • (5) Robofil 440 Charmilies
    • (2) Agie HHS machines
    • CX 20 Mitsubishi wire machine
    • FX 10 Mitsubishi wire machine
    • Mitsubishi EA 12
    • Charmilies Roboform 350
    • CNC EDM Drill (Small hole popper)


    Precision Grinding

    CAPABILITIES

    • .0002" flatness on 20"x40" steel
    • .0002" flatness on 10"x19" aluminum
    • (6) Chevalier automatic surface grinders, up to 20"x40"
    • (2) 6"x18" surface grinders
    • Techno-Wasino SG-4511 surface grinder
    • (3) Mitsui CNC surface grinder
    • (2) Mitsui manual surface grinders

    Jig Grind

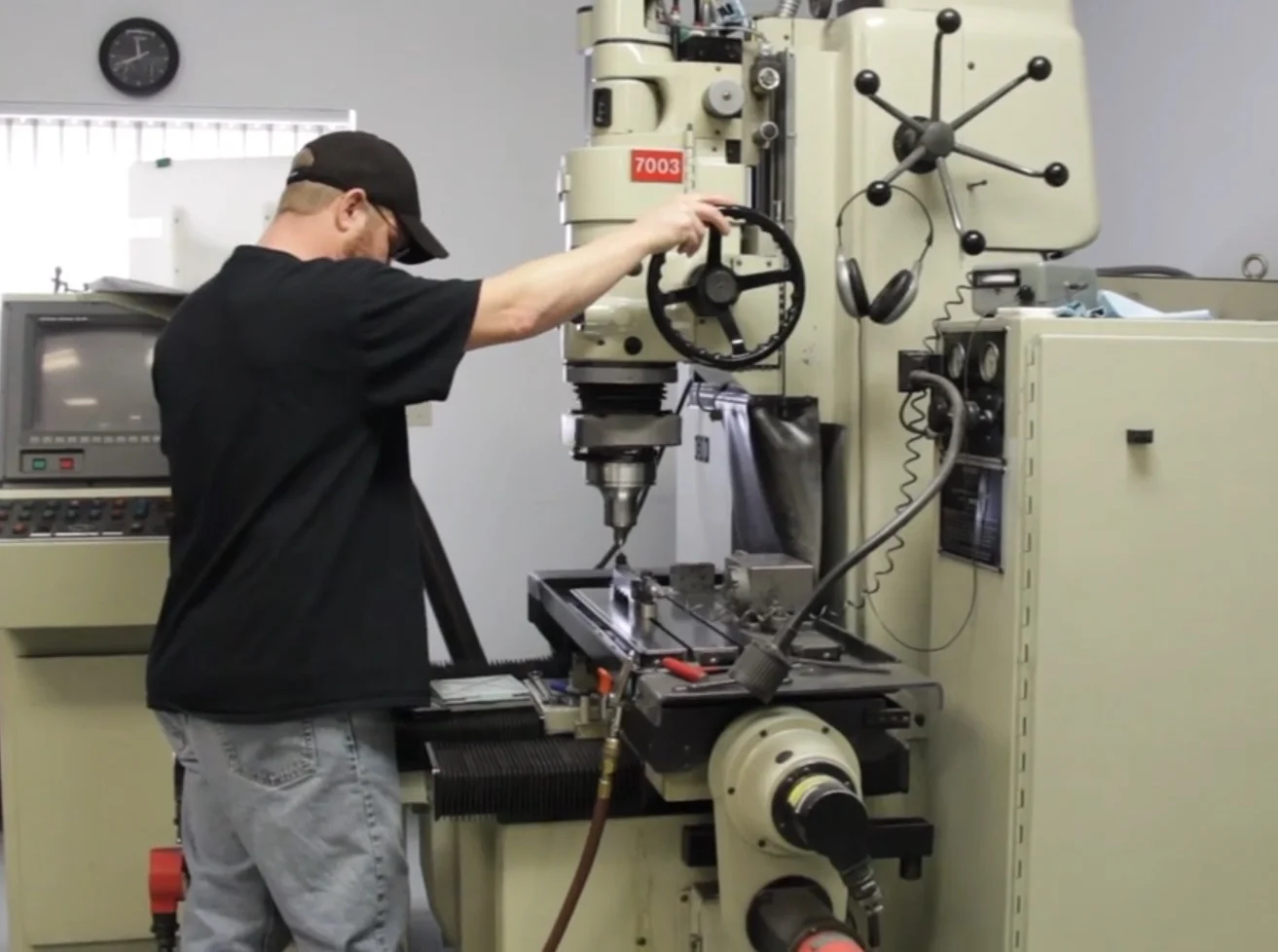

    The exceptionally tight tolerances, up to .00005 millionth of an inch, are only matched by the outstanding quality and dependability brought forth by our employee’s. When asked what we should write about on our website for this department, Ryan in Jig Grind said “There are 3 words that describe Jig Grind at MPTD, Service, Quality and Dependability”.

    CAPABILITIES

    • .000005 millionth of an inch
    • Extremely accurate
    • Moore 450 CPZ jog grinder
    • Moore 1000 CNC jig grinder
    • Moore 450 CPR CNC jig grinder
    • Moore manual jog grinder


    Assembly

    Machining is only the beginning…

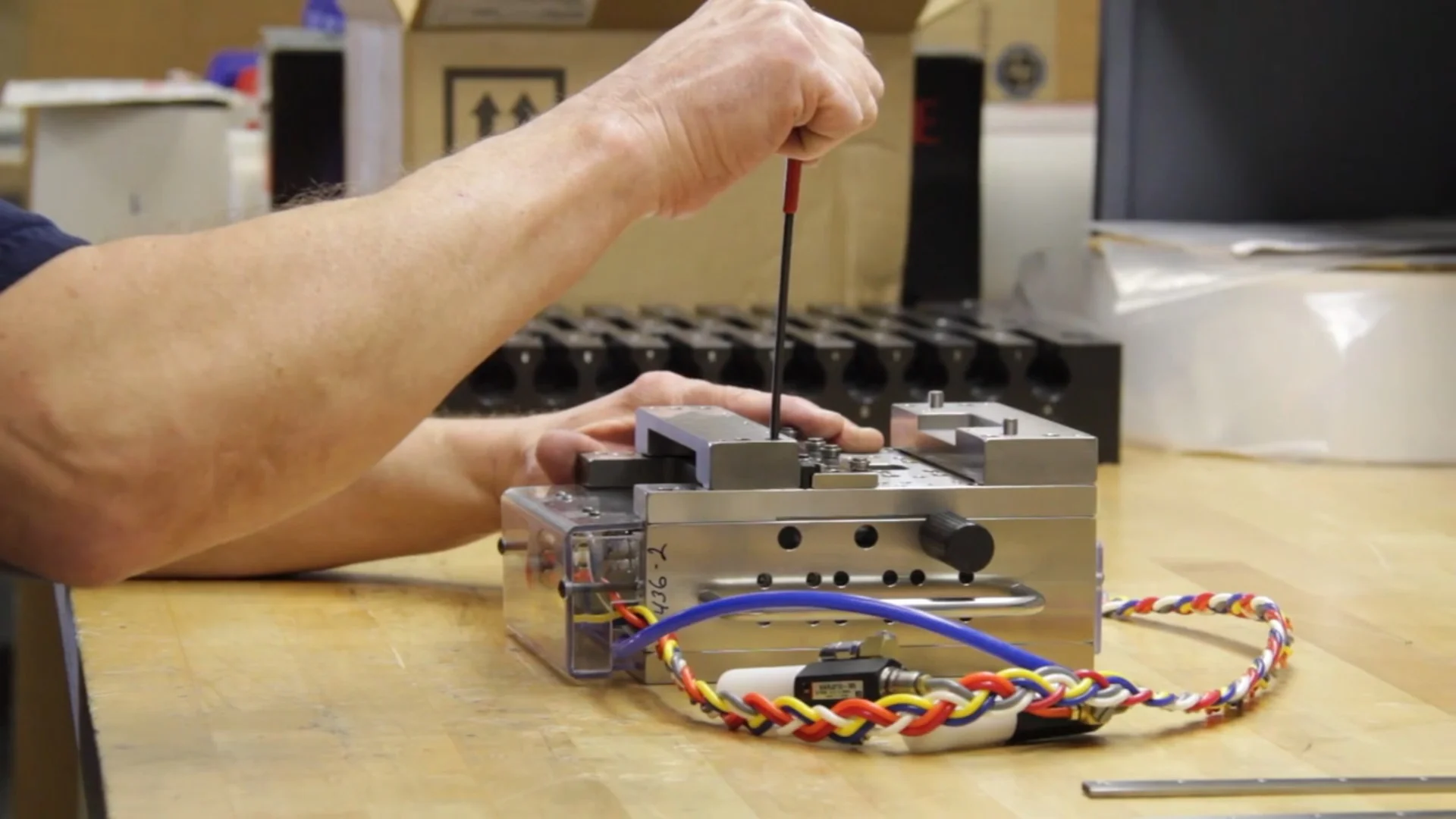

    Attached to the machine shop through doors that help keep temperature and humidity control managed, you will find the assembly area.  This is a clean and static free room well setup for everything from the assembly of newly machined parts, wiring and quality inspection.

    CAPABILITIES

    • Multi-part production assembly
    • Start to finish part assembly

    Quality

    Located in the heart of the Midwest, Midwest Precision prides itself on the quality of our employees and their dedication to our customers.  Quality isn’t a process; it’s a state of mind at Midwest Precision.

    CAPABILITIES

    • (2) Zeiss Prismo Vast CMM
    • (2) High tolerance micro VU vision system
    • Avant High precision video measuring machine
    • Heidenhain linear height gauge
    • AS9102 FAIRs
    • SPC and/or capability studies
    • Maintain internal calibration system
